Installation and Settings[ Step3 ]
To use the "MTG Pocket" application
A wireless LAN router (Access point) is required in order to operate a PLUS Copyboard remotely from your device.
1 : Connecting the wireless LAN and smartphone(operations on the smartphone)
- 1.
From the smartphone's home screen, tap Settings > Wi-Fi.
If Wi-Fi is set to "Off", tap "Off" to switch it to "On".
The names of connectable network are displayed.

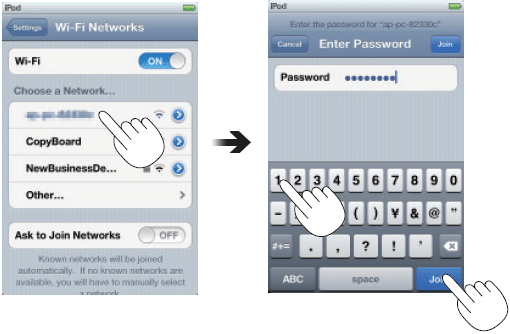

- 2.Tap the wireless LAN access point's network name (SSID) and input the password.
- •Input the password and the WEP key,etc indicated on the wireless LAN device's rating sticker.
- •If a padlock icon is displayed, the encryption function is activated. Ask the network administrator to give you the wireless LAN access point's encryption type and code key.
- 3.Tap the Join button.
A check is placed next to the connected network name and the Wi-Fi icon appears at the top
left of the screen.
You are now connected.
- 4.Tap the Settings button to return to the settings menu.
2 : Operating the "MTG Pocket" application(operations on the smartphone)
- 1.From the home screen, tap the MTG Pocket icon to open the MTG Pocket's home screen(hereafter referred to as the App Home Screen).
- 2.Tap the Settings icon to open the settings menu, then tap IP Address to search for the copyboard.
- 3.At the IP Address menu, tap the copyboard's IP address, then tap the Settings button.
- 4.On the Settings menu, tap the Done button to close the Settings menu.
- 5.At the App Home Screen, tap the Password button to open the Password Entry menu.
- 6.Tap the Show password button, input the 2-digit number flashing on the copyboard's display
window, then tap the Done button.
- *The password is changed automatically after a set amount of time (15 minutes by default).
If "Password Error" is displayed during remote control of the copyboard, press the Show password button to recheck the password.
The time after which the password changes can be changed at "Password Validity Period" in CB Setup.
- 7.Tap the Scan, Feed and Synchronize buttons on the App Home Screen to operate the copyboard.
