You can write seamlessly across an endless canvas.
This function enables a fast and easy sharing of meeting results.
Ordinary whiteboard markers preserve the freedom of handwriting

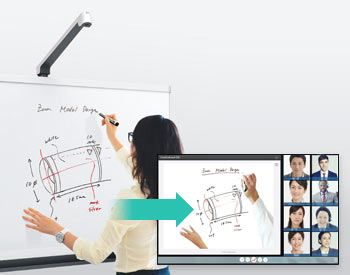

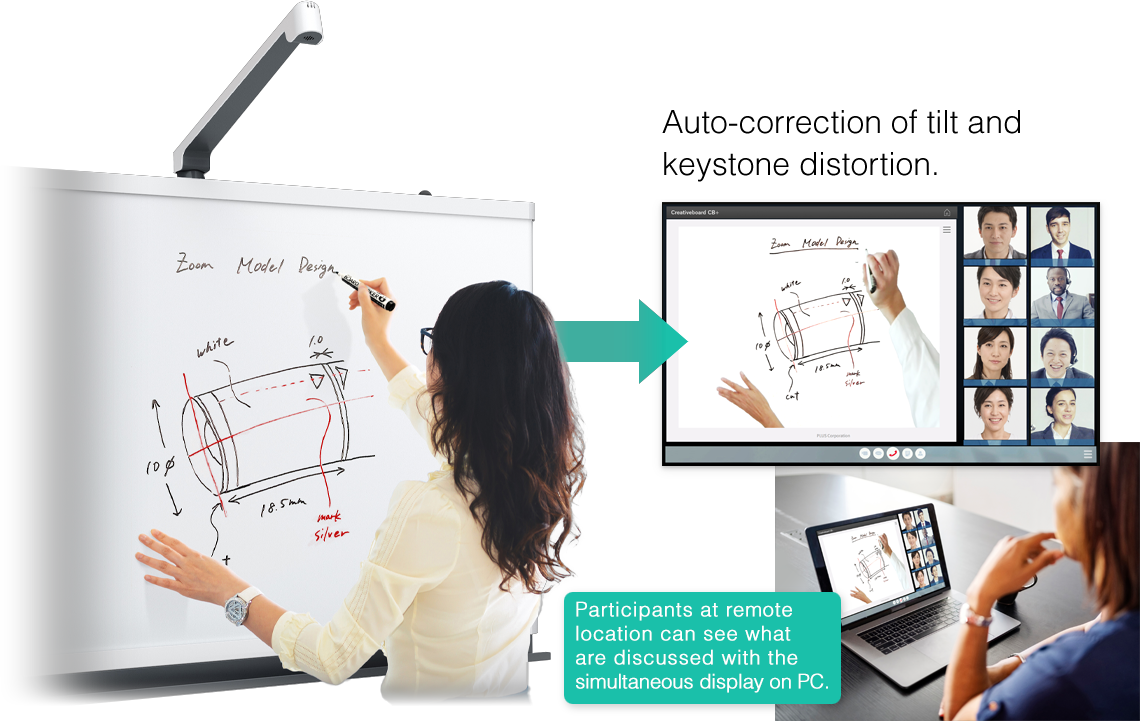

DX functions enables the whiteboard for online meetings use.
It realizes the comfortale and effective on-line meetings

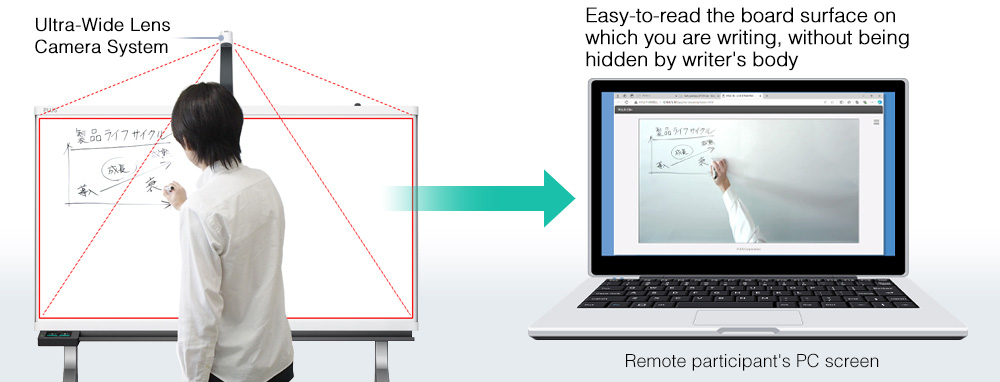

When using a standard webcam from the table side, the board surface is often hidden by the writer’s body or suffers from glare due to ceiling lights, making it hard to see.
With Creative Board CB+,without such frustration, enabling every participant to focus fully on the discussion.
Notes and ideas written on the sheet can be easily saved as PDF or JPEG files using the built-in scan function.

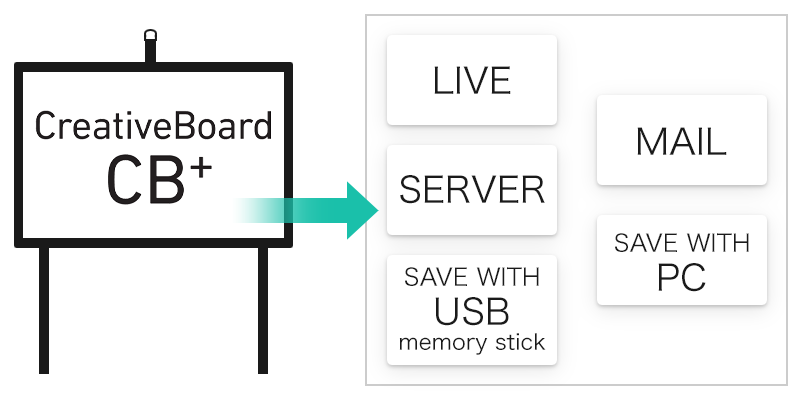

The main unit can be connected to a network via LAN for real-time sharing and sending of scanned images to an e-mail address or folder registered on the main unit. You can also save scanned images directly to a USB memory stick or PC connected to the main unit.

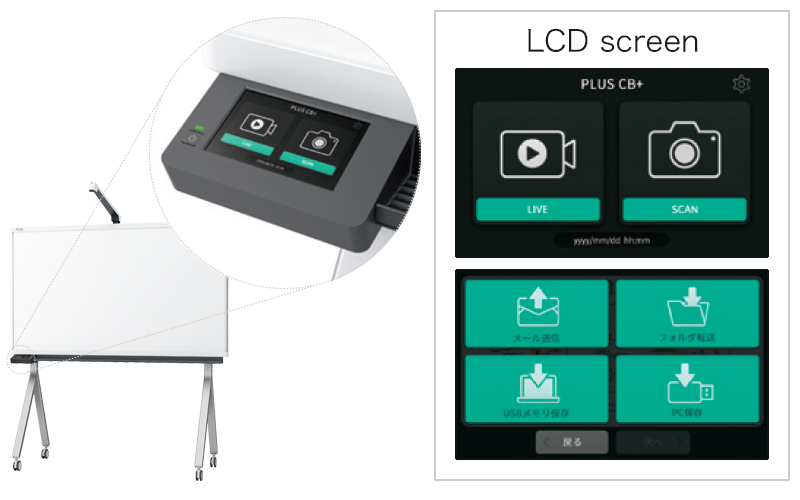

Equipped with a 5.0" touch panel. An easy-to-understand icon-based
（Play time 40 seconds）

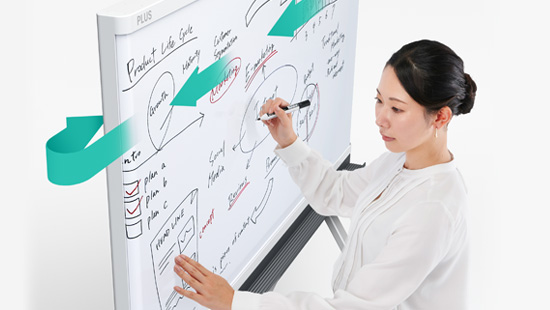

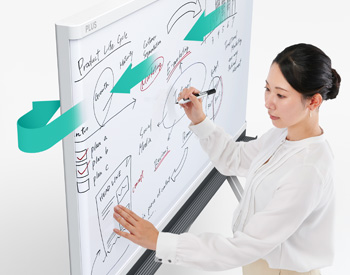

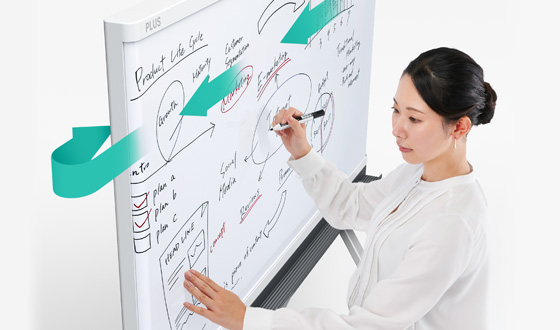

Equipped with the scrolling method sheet invented by Plus.
Thoughts and discussions can be seamlessly written out on the CB+ without interruption.
The sheet can be scrolled lightly by hand,
The sheet can be scrolled lightly by hand, and can be moved seamlessly in a circle from the front side to the back side.
This allows you to write on the sheet without losing focus of the discussion.

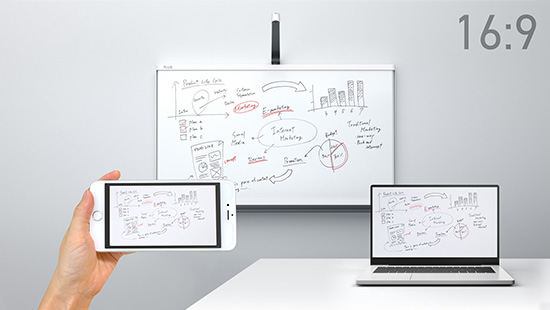

The board size is 16:9, which is the same as that of a general display
and is easy to view when photographed with a camera. (W1600 x H900mm)
Move effortlessly to wherever your team needs to collaborate - meeting rooms, open workspaces, or anywhere in between.
Key Features:

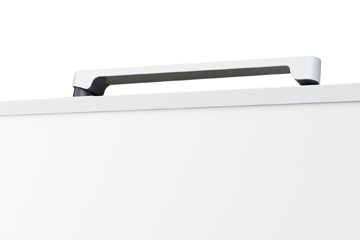

✓ Portable Design: Manual retractable camera for easy setup

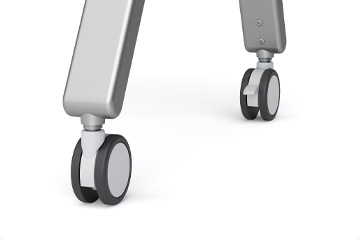

✓ Effortless Movement: Large casters enable smooth transitions between locations
(Available with stand base only)
（Play time 20 seconds）

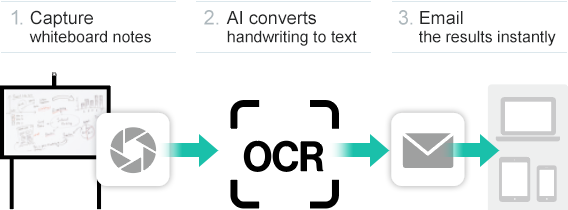

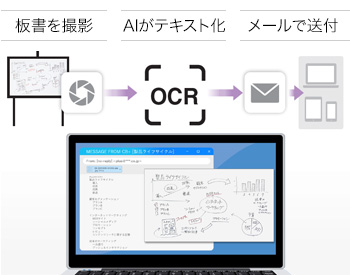

How It Works:

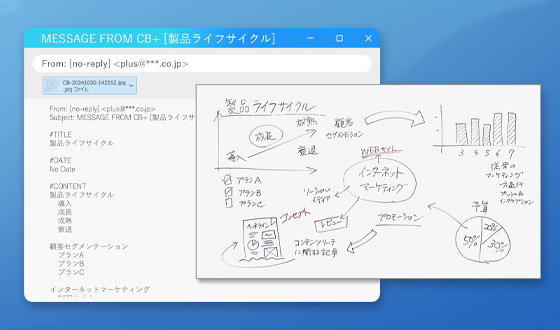

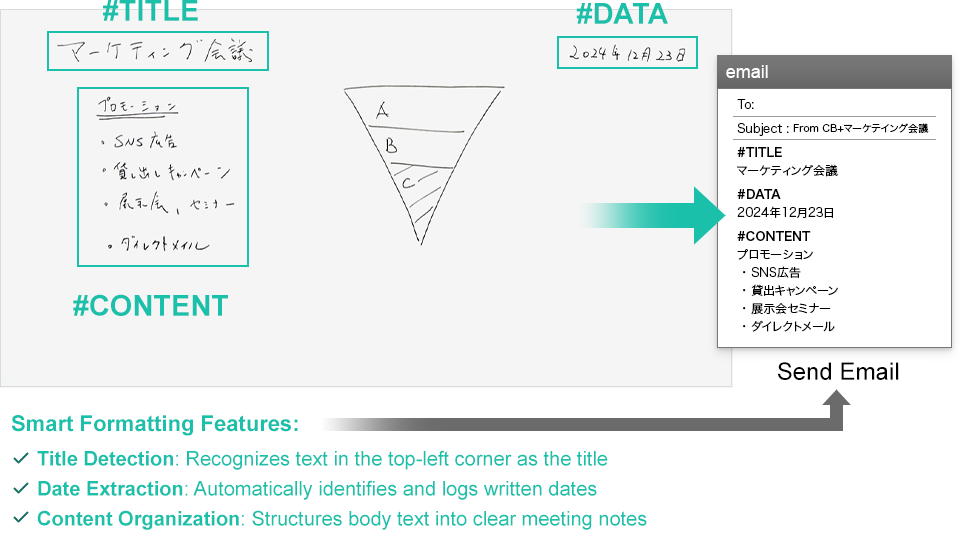

1. Capture handwritten content with your camera
2. AI converts notes to digital text using OCR
3. System auto-formats into meeting minutes and emails to participants
Important Notes:
※Low-legibility handwriting may not be recognized
※Diagrams/charts are not processed
※Text output only in case of email sharing (no file exports)
※Requires internet availability (uses external AI-OCR service)
（Play time 48 seconds）

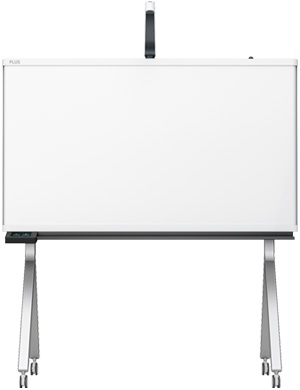

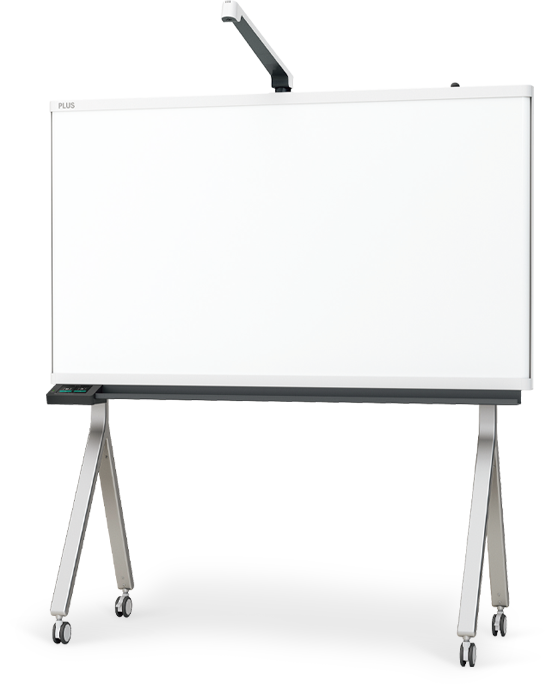

With Y-shape stand

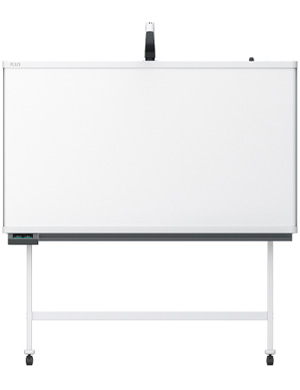

With T-shape stand

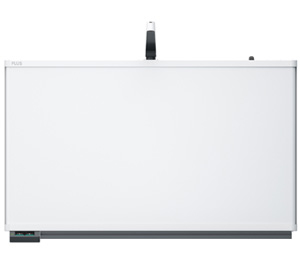

Wall hanging
| Type | With Y-shape stand | With T-shape stand | Wall hanging |
|---|---|---|---|
| Product size (mm) | W1691 D653※1 / 925※2 H1914※1 / 2068※2 |
W1691 D687※1 / 934※2 H1914(MAX) / 2068(MAX)※3 |
W1691 D173※1 / 644※2 H1124※1 / 1277※2 |
| Writing space (mm) | W1600 H900 |
W1600 H900 |
W1600 H900 |
| Product weight (mm) | 36 | 33.5 | 23 |
| Product color (board / stand) | White / Silver | White / White | White |
| Manuals |
CreativeBoard CB+ Operation Manual Creative Board CB+ Preparation Guide |
||
| Outline drawing | |||
[Common Specifications]
●Frame: Aluminum ●Corners: ABS ● Dust tray: Aluminum
●Stand: (Y-shaped type) Steel & Aluminum, (T-shaped type) Steel
● Casters (only on models with stands): Nylon (all with stoppers) ●Board surface: PET
● Accessories: Whiteboard markers (black & red), large eraser, assembly instructions, USB power cable
● Image quality: - During real-time streaming (video): Resolution 1920×1080 pixels /
Frame rate approx. 5 fps - During still image capture:Resolution 1920×1080 pixels
● Interface: - USB memory storage: USB 2.0 Type-A - PC connection: USB Type-C
● Network connection: Wireless (Wi-Fi), Wired (RJ-45)
● Power supply: AC (USB Type-C)
● Power consumption: Approx. 20W

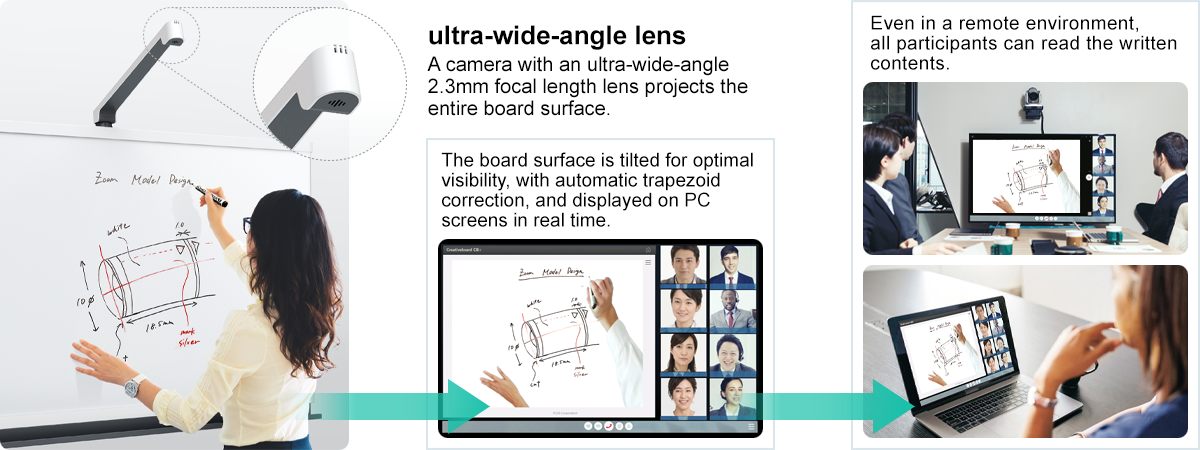

● Focal length: 2.3mm
● Control panel size: 5.0 inches
